Quick Start Guide for Arduino - Robotic Tutoring Course¶

1. Gather Necessary Components:¶

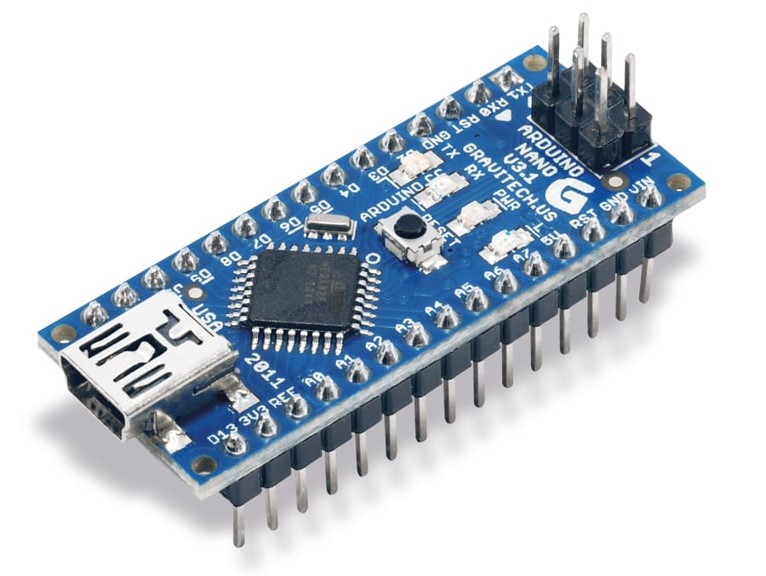

• Arduino Board: Choose an appropriate board (e.g., Arduino Nano).
• USB Cable: For connecting the Arduino to your computer.
• Computer: To install software and write code.

2. Install Arduino IDE:¶

• Download: Go to the Arduino Software page.
• Install: Follow installation instructions for your operating system (Windows, Mac, Linux).

3. Set Up Arduino IDE:¶

• Launch Arduino IDE: Open the installed Arduino IDE.
• Select Board: Navigate to Tools > Board > Select your Arduino model.
• Select Port: Navigate to Tools > Port > Select the appropriate COM port.

4. Write Your First Sketch:¶

• Open Example: Go to File > Examples > 01.Basics > Blink.

• Upload Sketch: Click the Upload button (right arrow icon) to upload the sketch to the board.
• Observe: The LED on the Arduino should start blinking.

5. Understand Arduino Code Structure:¶

• File Extension: Arduino code files have a .ino extension.
• Setup and Loop Functions:
  • setup(): Runs once when the Arduino is powered on or reset. Used for initializations.
  • loop(): Contains code that runs repeatedly, allowing the Arduino to perform tasks continuously.

6. Basic Arduino Code Example (Blink):¶

// The setup function runs once when you press reset or power the board
void setup() {
   // initialize digital pin LED_BUILTIN as an output.
   pinMode(LED_BUILTIN, OUTPUT);
}

// The loop function runs over and over again forever
void loop() {
   digitalWrite(LED_BUILTIN, HIGH);   // turn the LED on (HIGH is the voltage level)
   delay(1000);                       // wait for a second
   digitalWrite(LED_BUILTIN, LOW);    // turn the LED off by making the voltage LOW
   delay(1000);                       // wait for a second
}

7. Key Concepts in Arduino Programming:¶

• Functions:
  • pinMode(pin, mode): Sets the mode of a specified pin to input or output.
  • digitalWrite(pin, value): Sets a digital pin to HIGH or LOW.
  • delay(ms): Pauses the program for the specified number of milliseconds.
• Variables:
  • Use to store data values.
• Control Structures:
  • if statements: Conditional statements to execute code based on conditions.
  • for loops: To repeat a block of code a specified number of times.
  • while loops: To repeat a block of code while a condition is true.

Troubleshooting Guide for Starting with the Arduino IDE¶

1. Installation Issues:¶

• Unable to Install the Arduino IDE:
  • Ensure you have the latest version of the installer from the official Arduino website.
  • Verify that your operating system meets the minimum requirements for the Arduino IDE.
  • Run the installer as an administrator (right-click the installer and select "Run as administrator").
  • Disable any antivirus software temporarily, as it may interfere with the installation process.
  • Check that you have sufficient disk space on your system drive.

2. Driver Problems:¶

• Arduino Board Not Recognized:
  • Install the necessary drivers for your Arduino board. During the Arduino IDE installation, make sure you agree to install the drivers.
  • On Windows, manually install drivers from the Arduino IDE installation directory (typically C:\Program Files (x86)\Arduino\drivers).
  • On macOS and Linux, ensure you have the correct permissions to access the USB port.

3. Serial Port Issues:¶

• Serial Port Not Available:
  • Check if the Arduino board is properly connected to your computer via USB.
  • Use a different USB cable or port to rule out hardware issues.
  • Restart the Arduino IDE and your computer.
  • On Windows, ensure that the correct COM port is selected in the Arduino IDE under Tools > Port.
  • On macOS and Linux, the port name will typically start with /dev/tty.usbmodem or /dev/ttyUSB.

4. Compilation Errors:¶

• Sketch Fails to Compile:
  • Verify that your sketch code is correct and free of syntax errors.
  • Ensure that all necessary libraries are installed and correctly referenced in your code. You can install libraries via the Arduino Library Manager under Sketch > Include Library > Manage Libraries.
  • Update the Arduino IDE to the latest version to benefit from the latest bug fixes and features.

5. Uploading Issues:¶

• Unable to Upload Sketch to the Arduino Board:
  • Make sure the correct board is selected under Tools > Board.
  • Ensure the correct serial port is selected under Tools > Port.
  • Check if any other applications are using the serial port, and close them.
  • Reset the board by pressing the reset button before uploading.
  • Try a different USB cable or port.

6. Board Specific Issues:¶

• Issues Specific to Certain Arduino Boards:
  • Refer to the board-specific documentation and troubleshooting guides on the Arduino website or forums.
  • Ensure you have installed the correct board package from Tools > Board > Boards Manager.

7. IDE Crashes or Freezes:¶

• Arduino IDE Freezes or Crashes:
  • Clear the Arduino IDE cache by deleting the .arduino15 folder located in your user directory.
  • Increase the available memory for the IDE by closing other applications.
  • Update Java on your system, as the Arduino IDE relies on Java to run.
  • Reinstall the Arduino IDE.

8. General Connectivity Issues:¶

• Poor or No Communication with the Arduino Board:
  • Check the USB connection and ensure the board is powered.
  • Try a different USB cable or port.
  • Ensure that the board is not in a low-power state by pressing the reset button.

By following these troubleshooting steps, you should be able to resolve common issues when starting with the Arduino IDE. For more specific problems or advanced troubleshooting, refer to the Arduino community forums or the official support resources.
